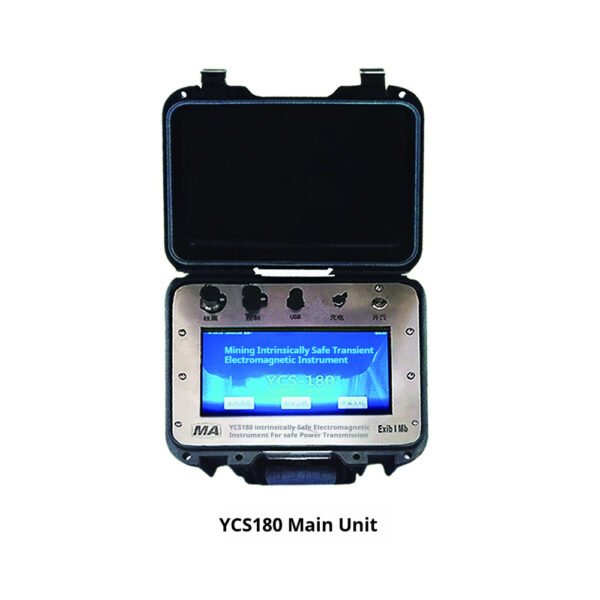

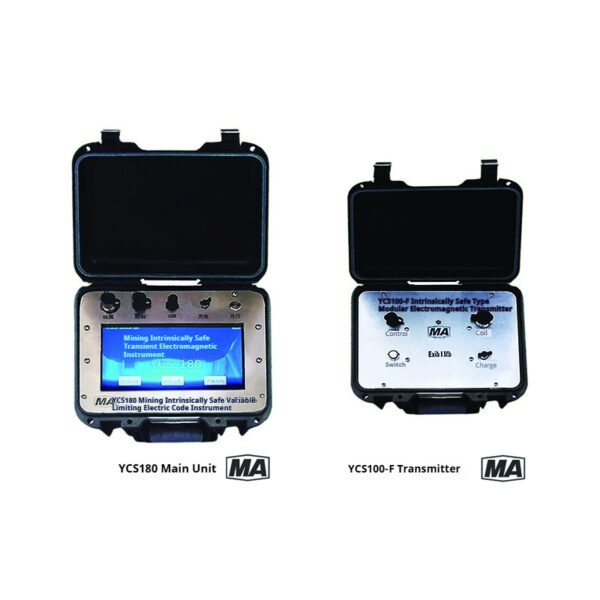

YCS180 Mine-use Intrinsically Safe Transient Electromagnetic Instrument

Sending current intensity: 20A
Current pulse width: 1ms, 2 ms, 3 ms, 4 ms, 5 ms
Current emission frequency: 256Hz, 75Hz, 62.5Hz, 12.5Hz, 6.25Hz, 1.5625Hz, lower; non-modulated single rectangular pulse output, frequency error ±2%
Coil specifications: 1.5m*1.5m
Number of superpositions: unlimited, optional;
Turn-off time: 0.1~20uS (related to coil inductance)
Transmitted waveform: Bipolar rectangular wave
Main control machine: Military-grade low-power embedded system
Number of channels: Up to 1024 channels (the number of channels can be set arbitrarily)
A/D converter: 24-bit
Minimum sampling interval: 1μS
Dynamic range: 140 dB
Noise floor: 0.1uV
Port: USB2.0
RAM: 2GB
Data storage: 16GB
Display: TFT10.4 inch (1024*800) 32-bit true color screen, LED backlight
Hardware platform: Embedded ARM processor Cortex-A8
Touch screen: 10.4-inch high-precision touch screen
Interpretation software: intelligent data processing and interpretation, one-key automatic mapping system, capable of matching and realizing 3D imaging display technology
Power supply: built-in high-performance rechargeable battery, ≤13.5V
Continuous working time: more than 10 hours
Host size: 406x330x174 (mm) (length x width x height)
Host weight: about 3.5Kg
Operating temperature: -20℃～+40℃



Application Areas

1. For roof, floor, and advanced detection in coal mines, the effective advanced detection distance can reach more than 150 meters.

2. Detect the structural distribution and water content of the mining area from the ground.

3. Exploration of hidden water-conducting structures during excavation and hidden water-conducting structures inside the working face during mining;

4. Detection of the buried depth and ore-bearing structure of good conductive ore bodies, other engineering exploration, and environmental exploration;

5. Advanced detection of full-space environments such as tunnels and lanes, with a distance of up to 150 meters;

6. Detection of vein direction in underground metal mines;

7. Detection of structures around underground caverns and metal pipelines;

8. Exploration of water sources in goafs and abandoned small coal mines, exploration of karst aquifers in coal seam floors, and sinkholes;

9. Conductivity exploration of water-conducting fracture zones induced by mining disturbances in the roof and floor plates.



Main Features

1. High-power mode: As the industry-leading high-power transient electromagnetic instrument for mining, the emission current reaches 20A, and the effective advanced detection distance is ≥150m, which can meet the highest energy efficiency in tunnel and roadway environments.

2. Optimized hardware configuration: The integrated receiving and transmitting host design abandons the traditional high-power transmitter in the industry, reducing the labor intensity of downhole technicians and improving work efficiency; the passive transmitting and receiving coils are integrated into a compact structure, and the system configuration is lightweight, suitable for on-site transportation and convenient use; the high-precision touch screen is more user-friendly and convenient to use; the advanced low-power embedded operating system is more stable to use; the data is intelligently stored, eliminating the need for manual operation and storage.

3. Advanced construction method: using an advanced “8” shaped coil construction method to ensure accurate detection capability;

4. Intelligent internal work system: The equipment is equipped with an intelligent internal work interpretation and a one-key automatic drawing system;

5. 3D imaging display: Supports industry-leading 3D imaging display and analysis technology for detection results;

6. By increasing the transmission power, the secondary field is enhanced, the signal-to-noise ratio is improved, and thus the exploration depth is increased; the signal-to-noise ratio is improved by repeatedly measuring and superimposing the secondary field with multiple pulse excitations and applying multiple coverage technologies in the spatial domain. This can be applied to underground mines and tunnel roofs, floors, and advanced detection, where the work is complex and the noise interference is large.
